Free standing stall bars


Bjørn Harald Grimås
 Share

Recommended Posts

Brent Johnson

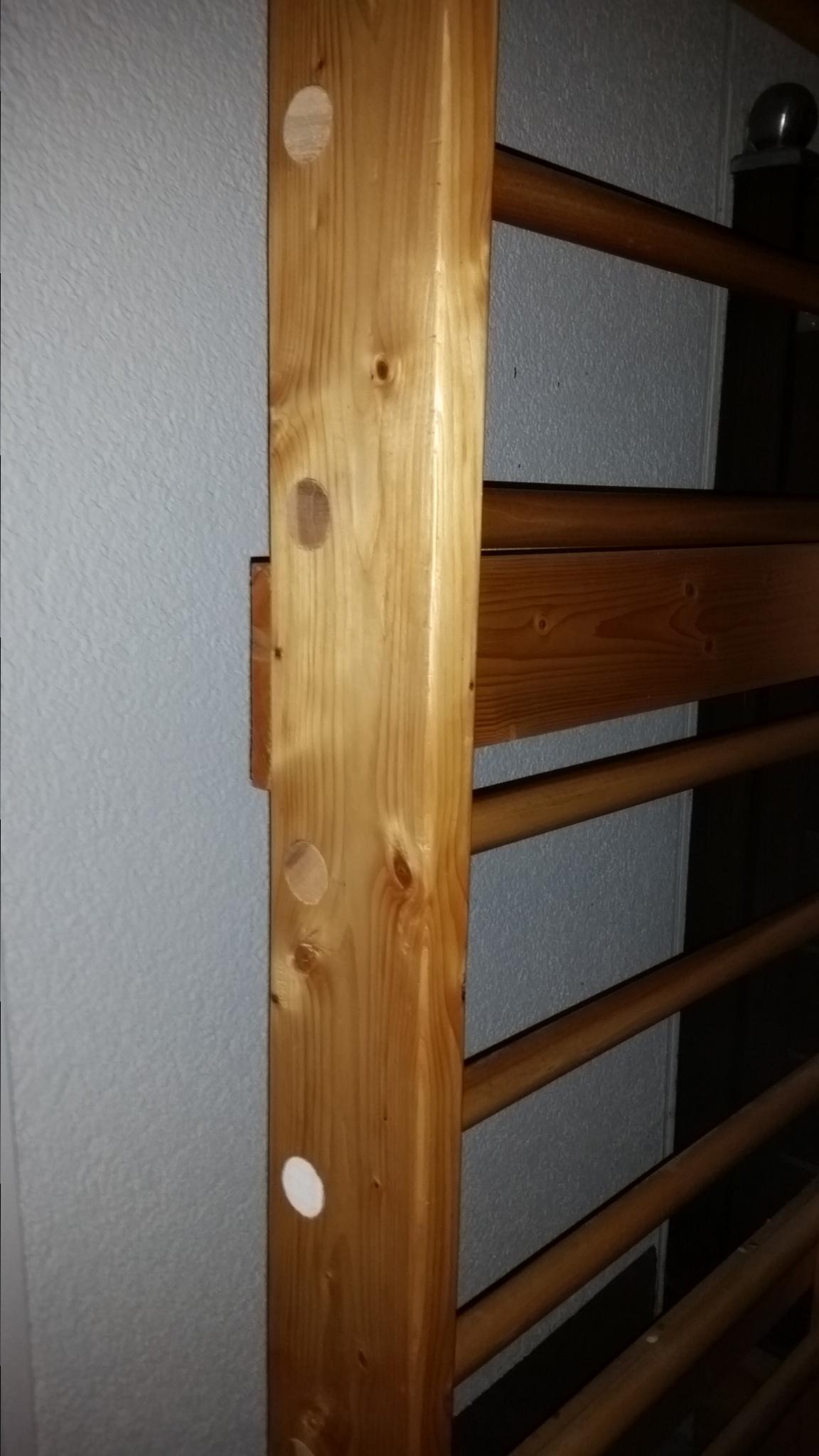

Very easy to fix by inserting a screw through the dowel.  These are my stall bars.  Note that I drilled holes completely through the sides so I could remove dowels or take the whole thing apart.  If your stall bars look like this, you can insert a screw from behind, aim right in the middle of the width, and you'll go thru the dowel.  If you can't see the dowel from the side, you'll need to move your insertion point from exactly the middle to slightly more to the inside.

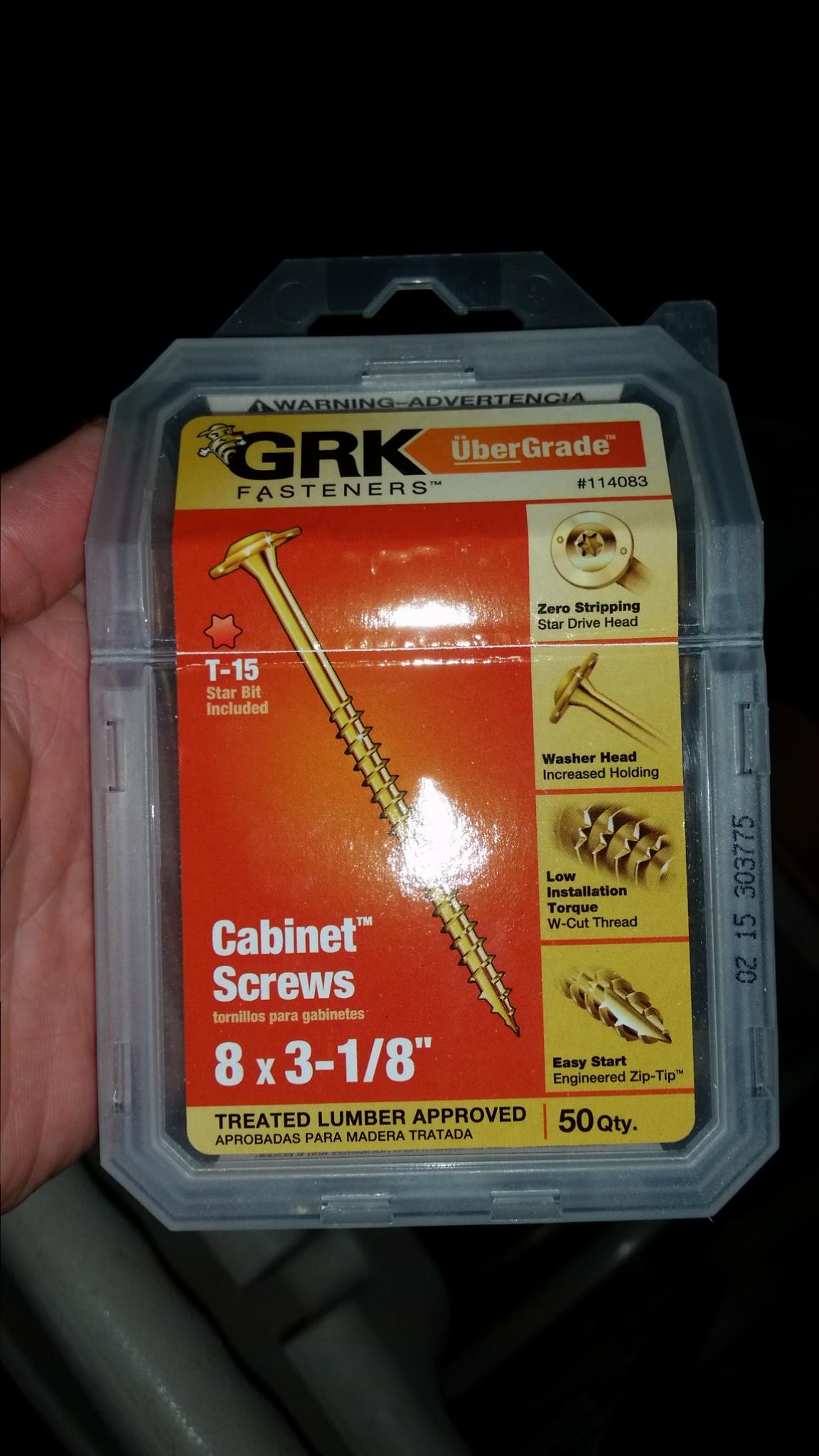

Get yourself these exact screws from Home Depot.  If you don't live in the US, get similar length screws, preferably self-drilling, self-tapping.

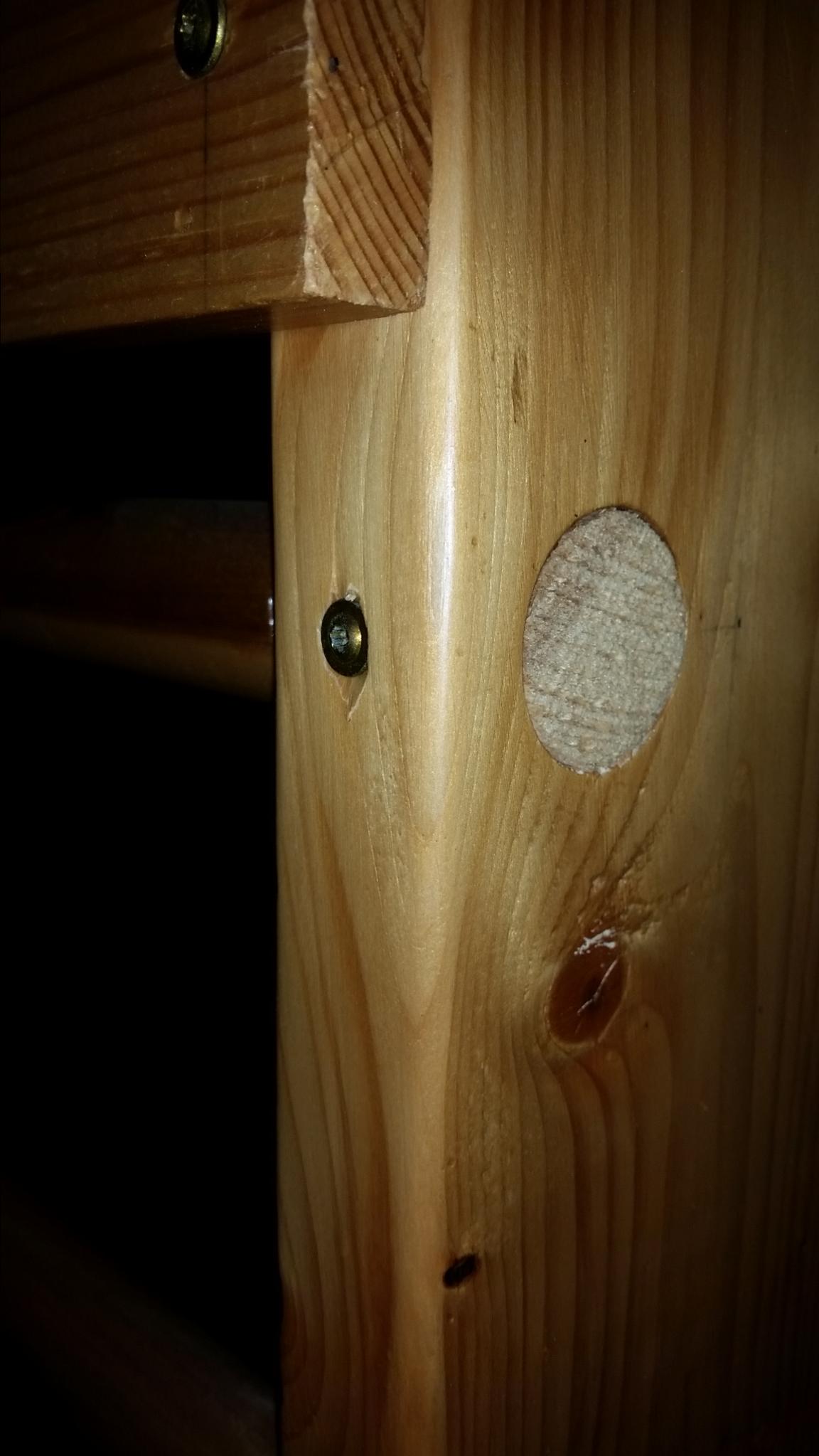

Here's a closeup from behind so you can see how the screws are inserted from back to front, through each dowel.  This is a solid hold and the dowels don't move.

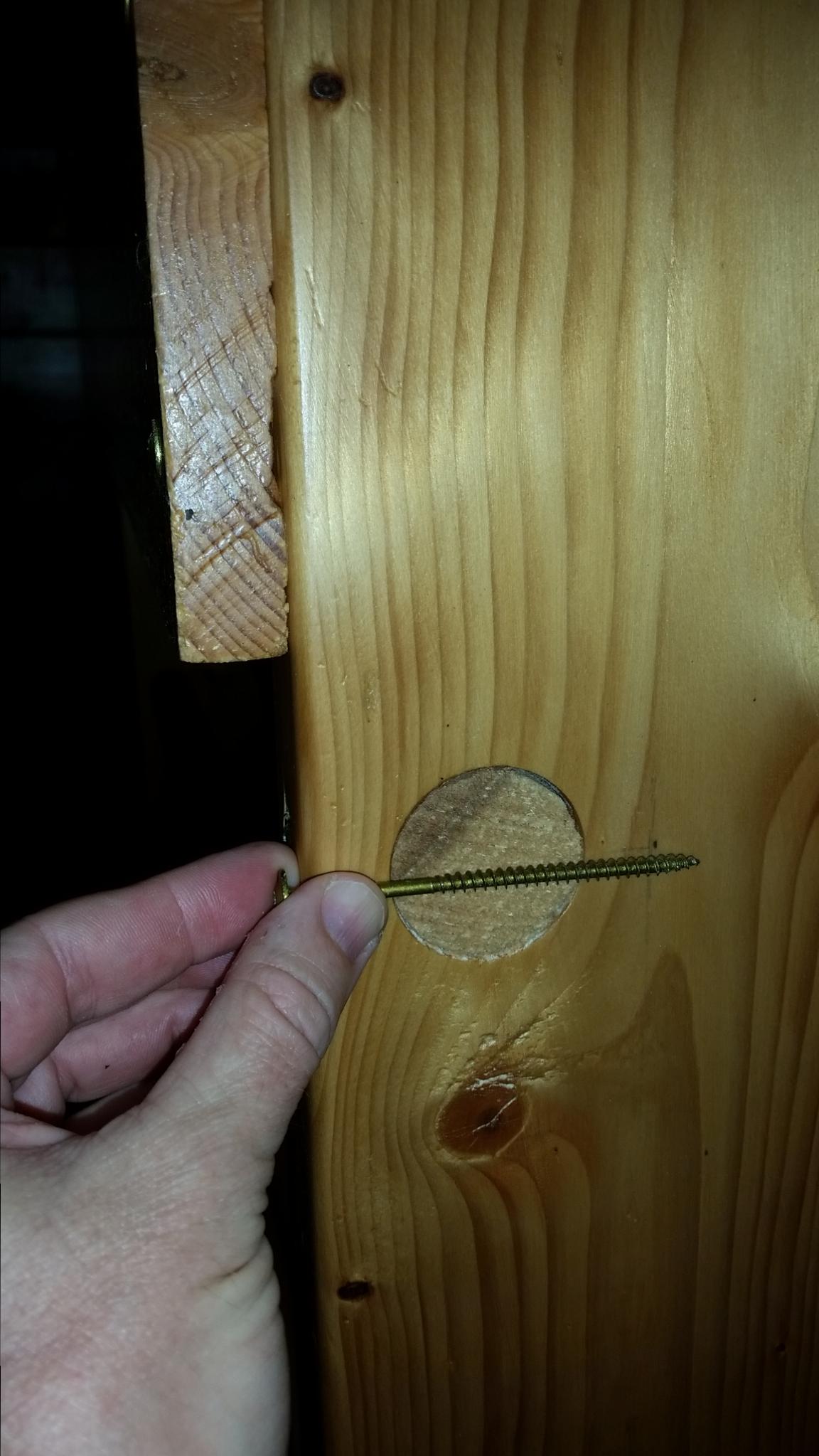

Here's the same-length screw so you can see how deep it goes...all the way through the dowel.

I'd suggest you carefully drill a hole with a drill bit a little more narrow than the screw.  This will help the screw enter exactly where you want it to go.  The screw is self-drilling, so you don't need to drill more than just into the back of the wood.  If you need to practice before you do this (like I always do when I try something new), buy a 2x4 and drill some practice holes in the edge.










screw length.jpg

  • Upvote 2
Link to comment
Share on other sites

Brent Johnson

You're welcome!  Each box of GRK screws comes with a small bit that might work with a screwdriver.  Buy the separate same - size bit that you can chuck up in a drill and you can power the screw right it.  Do make sure that you have the insertion point right so that the screw goes through the center of the dowel (or as close as possible).  Also practice a couple times to make sure you get the screw parallel to the inside edge of the wooden upright.

You'll probably decide that you need to put screws thru the rest of the dowel ends as well!  :-)  More screws are better...putting these screws in is fun.
