DIY Parallel Bars


Chad Burger
 Share

Recommended Posts

Hi all,

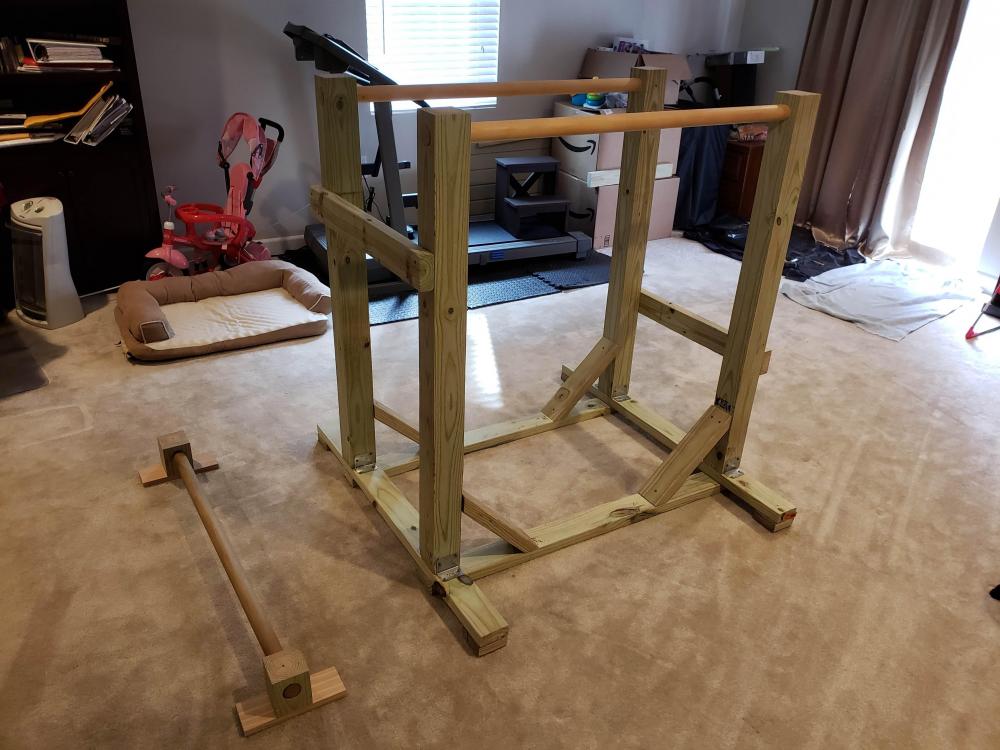

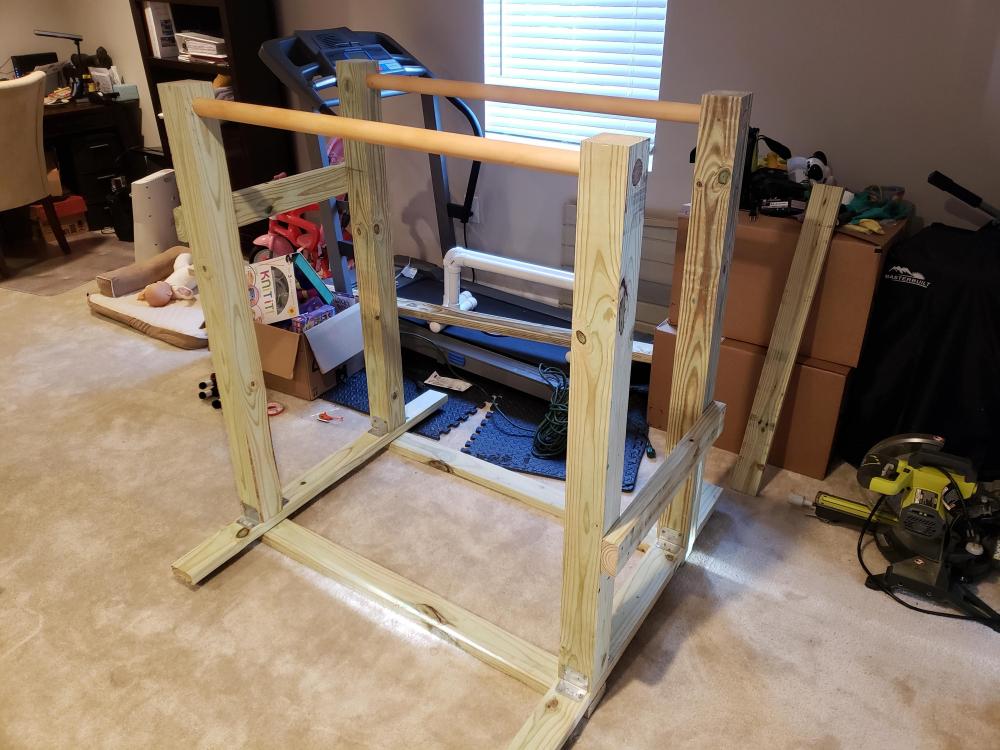

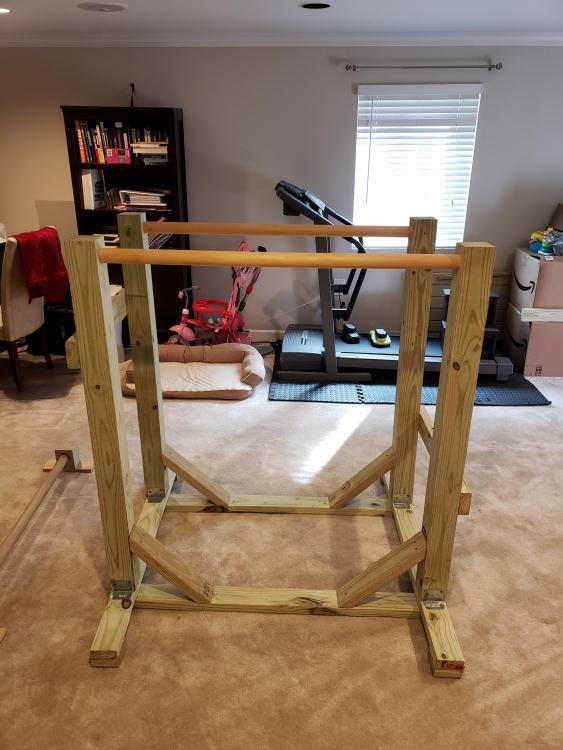

I just finished building a set of parallel bars to use as I am just now moving to the Russian dip progression.  Seem to be sturdy and are working out great so far.  Cost for the wood and material was about $100.


Link to comment
Share on other sites

Sweet!

You might also need some bracing on each side: bottom left to top right, as the russian dips involve pushing backward.

Is there anything under the feet? (wooden parts that extend outwards on each side).

Link to comment
Share on other sites

12 hours ago, Nick Murray said:

Sweet!

You might also need some bracing on each side: bottom left to top right, as the russian dips involve pushing backward.

Is there anything under the feet? (wooden parts that extend outwards on each side).

Thanks Nick!  I did add blocks under the corners after the picture was taken.  I will take your advice a brace the posts.

Link to comment
Share on other sites

  • 1 year later...

Hi Glen,

The bars are 4' long 1 1/2" hardwood dowel rods.  The height of the posts are 50" and the space between the posts is about 19" giving about 20" space between the bars.  I am 6'5" and wanted something taller so consider your height when building.   Good luck and happy building.

Chad

Link to comment
Share on other sites

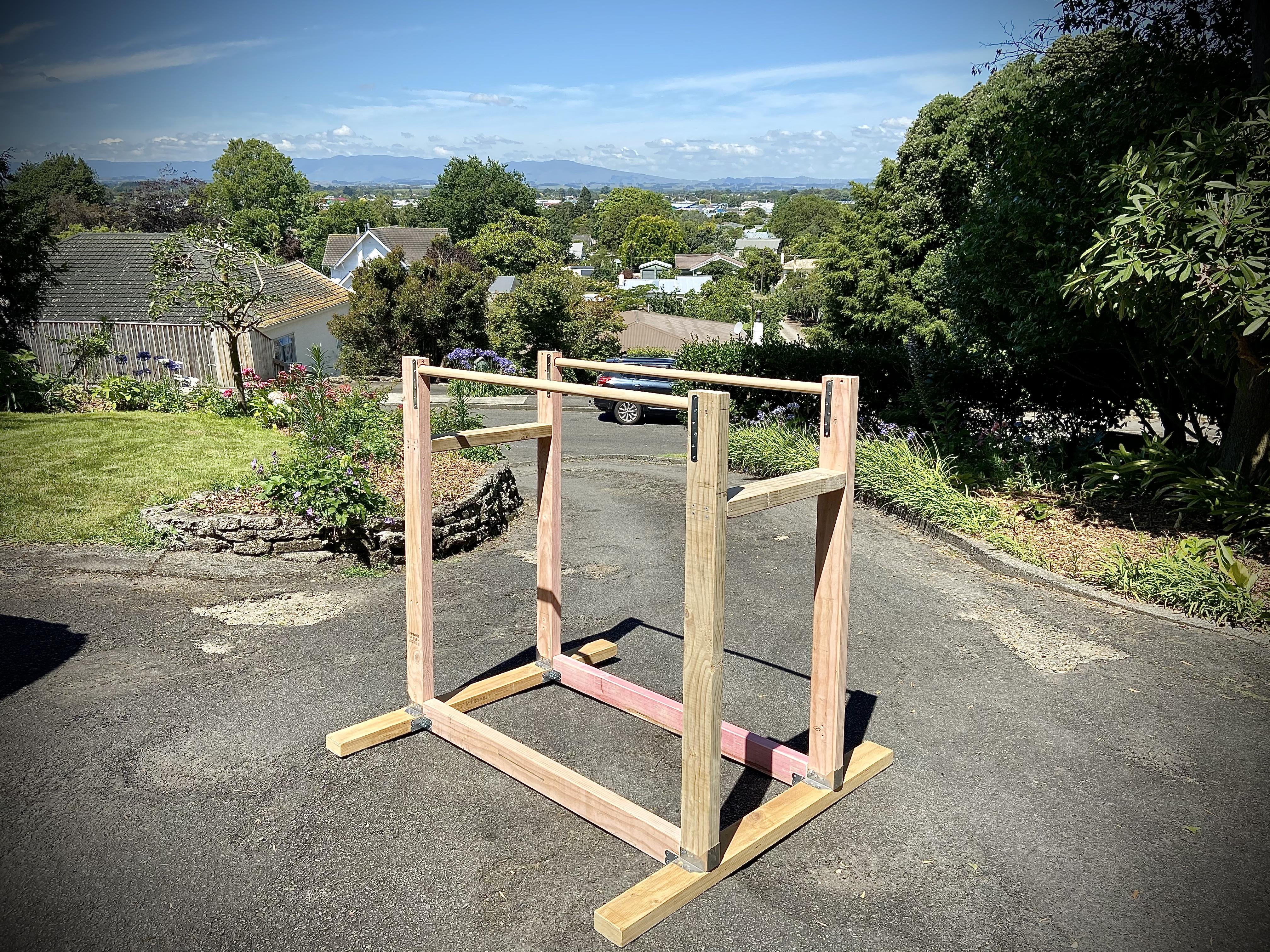

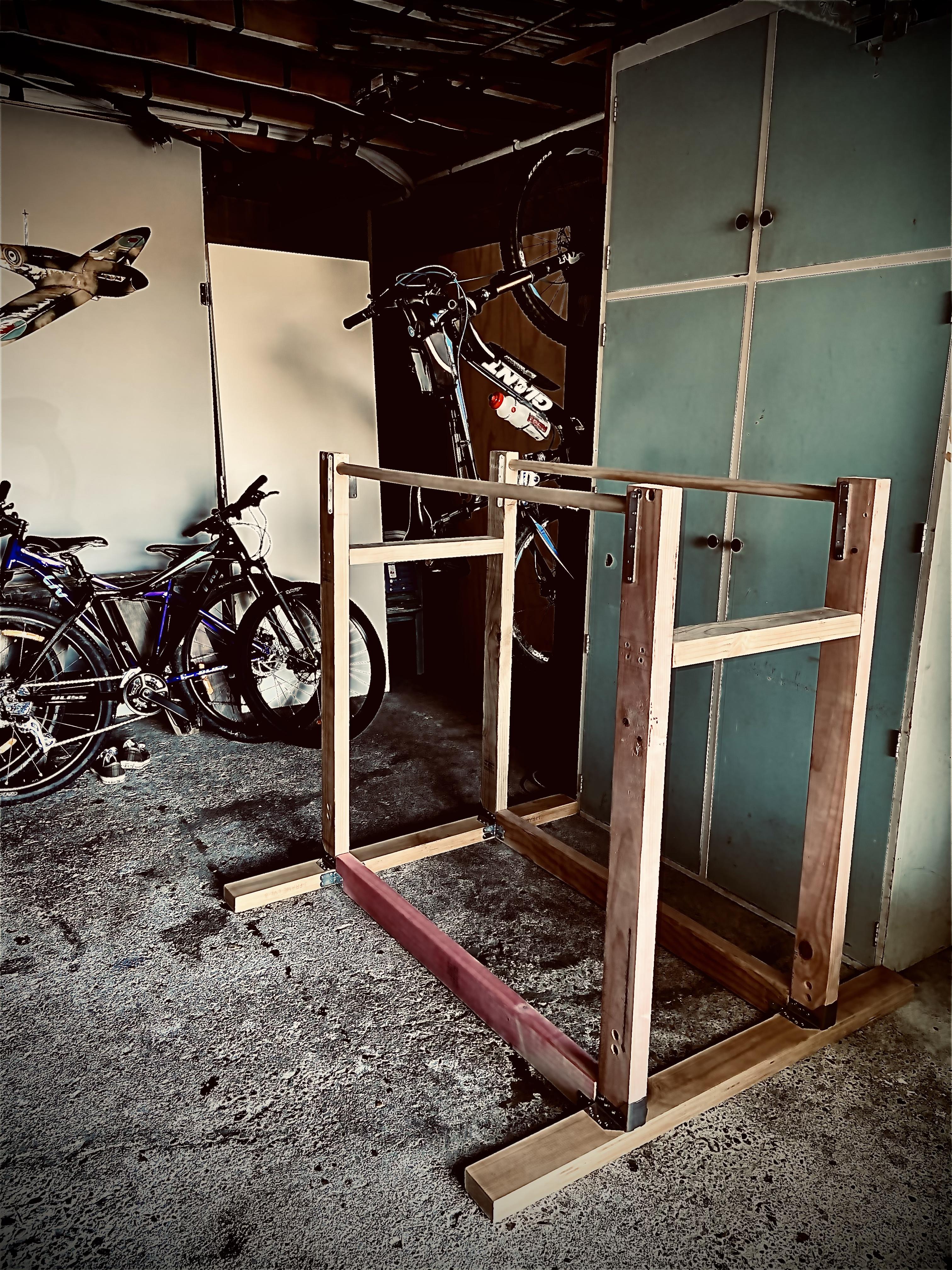

After reading through a few posts on the topic of DIY Parallel Bars (including this one) inspiration took hold of me and I built my own.


I’m happy with the result - they’re not ‘pretty’ but they work. I’ll probably upgrade the bars to metal at some stage - there’s some flex in the pine dowel which may weaken them over time.


Happy to provide dimensions if requested.



Link to comment
Share on other sites
